shr25ppb1

20MTS.CUBRE CABLE 25MM NEGRO

Referencia: SHR25PPB

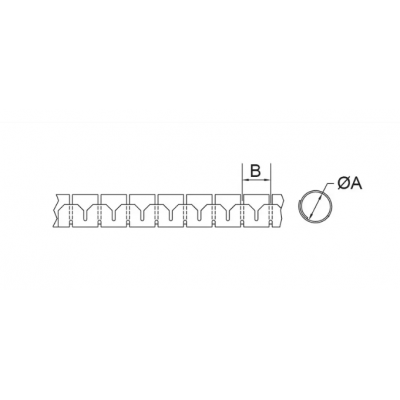

Part # Dia. "A" Max. Bundle Dia. Wall "B" "C"
SHR25PPB .98 (25) .98 (25) .039 (1.0) .79 (20)

Mechanical Properties Dimension DIN-ISOR R Values
Tensile Strength N/mm² 53455-527 80 ± 5
Elongation of breaking point % 53455-527 10 ± 2
Flexural strength N/mm² 53452-178 105 ± 10
Impact strength Kj/m² ASTM-D 256 5 ± 2

Physical Properties Dimension ASTM-ISOR R Values
Shore hardness Points D 2240-Type D 79 ± 2
Density KG/dm³ D 792-1183 1,16 ± 0,02
Melt flow index GRM/10min D 1238-1133 6 ± 2

Thermal Properties Dimension ASTM-ISOR R Values
Fusion temperature °C D 2117-1218 225
Plast temperature °C D 2990-899 > 212
Inflammability UL-94 - D 635 V-0
Thread 960 °C - - OK
Application temperature
Instantaneous
Continue

°C
°C
-
-60 to +80
-60 to +150

General Properties Dimension ASTM-ISOR R Values
Grane humidity % D 570-1110 0,2 max
Heat treatment - - Yes
Color - - Black
34,94 €
Impuestos incluidos
Cantidad
Disponible

  Compra Segura

Todos los datos de compra son encriptados y protegidos

  Política de entrega

Envío en 48/72 horas

  Política de devolución

14 días de devolución

Part # Dia. "A" Max. Bundle Dia. Wall "B" "C"
SHR25PPB .98 (25) .98 (25) .039 (1.0) .79 (20)

Mechanical Properties Dimension DIN-ISOR R Values
Tensile Strength N/mm² 53455-527 80 ± 5
Elongation of breaking point % 53455-527 10 ± 2
Flexural strength N/mm² 53452-178 105 ± 10
Impact strength Kj/m² ASTM-D 256 5 ± 2

Physical Properties Dimension ASTM-ISOR R Values
Shore hardness Points D 2240-Type D 79 ± 2
Density KG/dm³ D 792-1183 1,16 ± 0,02
Melt flow index GRM/10min D 1238-1133 6 ± 2

Thermal Properties Dimension ASTM-ISOR R Values
Fusion temperature °C D 2117-1218 225
Plast temperature °C D 2990-899 > 212
Inflammability UL-94 - D 635 V-0
Thread 960 °C - - OK
Application temperature
Instantaneous
Continue

°C
°C
-
-60 to +80
-60 to +150

General Properties Dimension ASTM-ISOR R Values
Grane humidity % D 570-1110 0,2 max
Heat treatment - - Yes
Color - - Black
SHR25PPB
Nuevo
