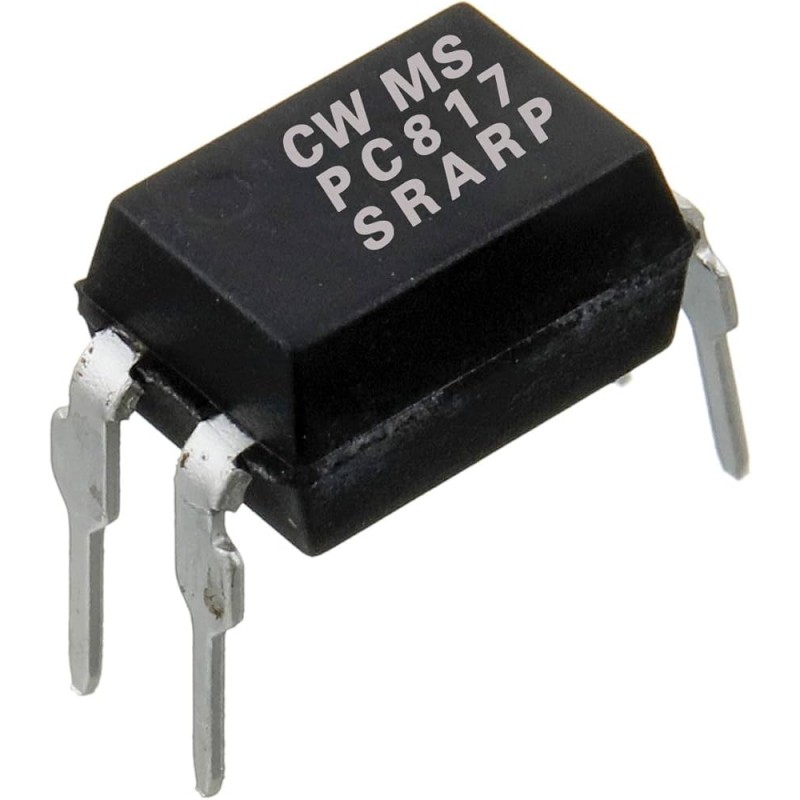

OPTO.TRT 5000V 50MA SHARP
Referencia: PC817OPTOACOPLADOR
Descripción
Descripción
- OPTOACOPLADOR, TRANSISTOR O/P
- N.° of Channels:1
- Isolation voltage:5kV
- Tipo de salida:Transistor
- Input Current:50mA
- Opto Case Style:DIP
- N.° of Pins:4
- Organismos de homologación:Underwriters Laboratories (empresa)
- Categoría de homologación:UL Recognised
- Tipo de caja:DIP-4
- Collector-to-Emitter Breakdown Voltage:80V
- External Depth:4.58mm
- External Length / Height:3.5mm
- External Width:6.5mm
- Fall Time Tf:18µs
- Lead Spacing:2.54mm
- Max Current Ic:8mA
- Max Current If:50mA
- Max Operating Temperature:100°C
- Max Output Voltage:80V
- Min Current Ic:4mA
- Min Temperature Operating:-30°C
- Operating Temperature Range:-30 °C a +100 °C
- Tipo de optoacoplador:con salida por transistor
- Potencia de disipación:200mW
- Tiempo de subida:18µs
- Row Pitch:7.62mm
- Max Current Transfer Ratio:160%
- Min Current Transfer Ratio:80%
0,28 €
0,34 €
(impuestos excl.)
(impuestos inc.)

Todos los datos de compra son encriptados y protegidos

Envío en 48/72 horas

14 días de devolución
OPTOACOPLADOR
Descripción
Descripción
- OPTOACOPLADOR, TRANSISTOR O/P
- N.° of Channels:1
- Isolation voltage:5kV
- Tipo de salida:Transistor
- Input Current:50mA
- Opto Case Style:DIP
- N.° of Pins:4
- Organismos de homologación:Underwriters Laboratories (empresa)
- Categoría de homologación:UL Recognised
- Tipo de caja:DIP-4
- Collector-to-Emitter Breakdown Voltage:80V
- External Depth:4.58mm
- External Length / Height:3.5mm
- External Width:6.5mm
- Fall Time Tf:18µs
- Lead Spacing:2.54mm
- Max Current Ic:8mA
- Max Current If:50mA
- Max Operating Temperature:100°C
- Max Output Voltage:80V
- Min Current Ic:4mA
- Min Temperature Operating:-30°C
- Operating Temperature Range:-30 °C a +100 °C
- Tipo de optoacoplador:con salida por transistor
- Potencia de disipación:200mW
- Tiempo de subida:18µs
- Row Pitch:7.62mm
- Max Current Transfer Ratio:160%
- Min Current Transfer Ratio:80%
PC817
