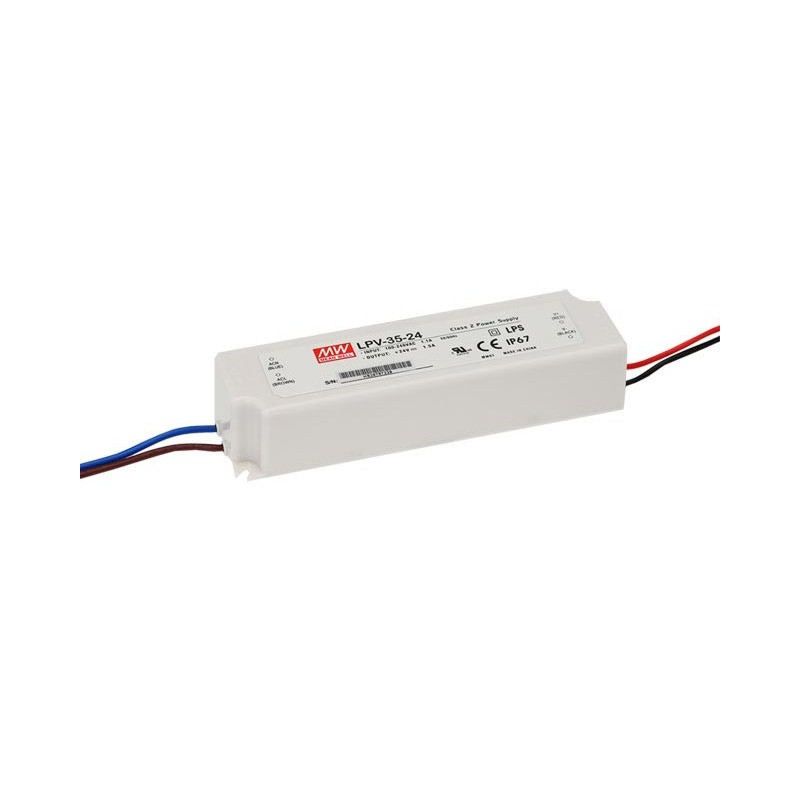

FUENTE ESTANCA 24V 1.5A IP-67
Referencia: LPV-35-24Description
LPV-35 Series are 35W AC/DC enclosed, non PFC design, switching power supplies. LPV-35 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-35 Series possesses high efficiency and can operate between -30°C ~ +75°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-35 can withstand 300VAC input surge for 5 seconds.
Specification
| Input Voltage | 90 ~ 264Vac |
|---|---|
| Input Frequency | 47 ~ 63Hz |
| Input Current | 1.1A/115Vac 0.7A/230Vac |
| Inrush Current | 30A/115Vac 60A/230Vac, cold start |
| Leakage Current | 0.25mA/ 240Vac |
| Line Regulation | ±1.0% |
| Set Up, Rise Time | 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load |
| Hold Up Time | 50ms/230Vac 16ms/115Vac at full load |
| Over Current Protection | 110 ~ 150% rated output power |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage Protection | Shut down o/p voltage, re-power on to recover |
| Working Temperature | -30°C~ +75°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for60min. each along X,Y, Z axes |
| Withstand Voltage | I/P-O/P:3KVAC |
| Isolation Resistance | I/P-O/P:>100M Ohms/500VDC 25°C 70%RH |
| Safety Standards | UL1310 Class 2, CAN/CSAC22.2 No. 223-M91, IP67 approved, design refer to TUV EN60950-1, EN61347-2-13 |
| EMC | Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3; ENV50204; |
| EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A | |
| MTBF | 743.5Khrs min. MIL-HDBK-217F (25°C) |
| Dimensions | 148 x 40 x 30mm |
LPV-35-24 Specifications
| Voltage | Rated Current | Current Range | Rated Pwr | R&N | Volt. Tol. | Load Reg | Eff. | OVP |
| 24V | 1.5A | 0 ~ 1.5A | 36W | 150mV | ±5.0% | ±2.0% | 85% | 27.6 ~ 32.4V |
12,50 €
15,13 €
(impuestos excl.)
(impuestos inc.)
Compra Segura
Todos los datos de compra son encriptados y protegidos
Política de entrega
Envío en 48/72 horas
Política de devolución
14 días de devolución
