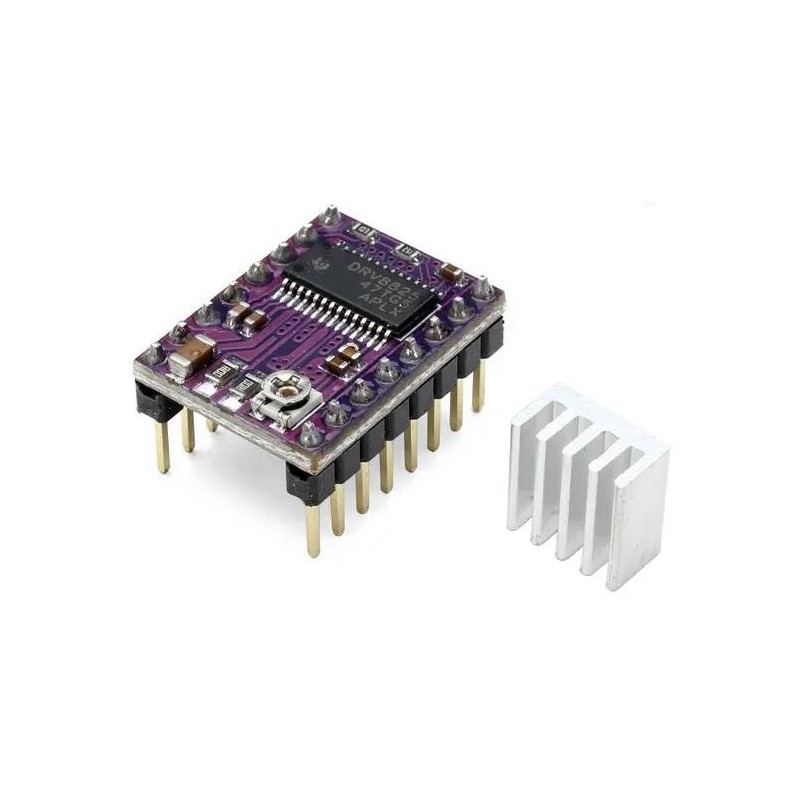

DRIVER MOTOR PASO A PASO 8.2V a 45V 2.5A

Referencia: DVR8825

FEATURES

PWM Microstepping Stepper Motor Driver
- Built-In Microstepping Indexer
- Up to 1/32 Microstepping
Multiple Decay Modes
- Mixed Decay
- Slow Decay
- Fast Decay
8.2V to 45V Operating Supply Voltage Range
2.5A Maximum Drive Current at 24V and TA = 25°C

Simple STEP/DIR Interface
Low Current Sleep Mode
Built-In 3.3V Reference Output
Small Package and Footprint
Protection Features
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- VM Undervoltage Lockout (UVLO)
- Fault Condition Indication Pin (nFAULT)

APPLICATIONS

Automatic Teller Machines
Money Handling Machines
Video Security Cameras
Printers
Scanners

Office Automation Machines
Gaming Machines
Factory Automation
Robotics

8,45 €

10,22 €

(impuestos excl.)

(impuestos inc.)

Compra Segura

Todos los datos de compra son encriptados y protegidos

Política de entrega

Envío en 48/72 horas

Política de devolución

14 días de devolución

Texas Instruments DRV8825 Stepper Motor Controller ICs

Texas Instruments DRV8825 Stepper Motor Controller ICs provide an integrated motor driver solution for printers, scanners, and other automated equipment applications. TI DRV8825 stepper motor controller ICs have two H-bridge drivers and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The Texas Instruments DRV8825 can supply up to 2.5A peak or 1.75A RMS output current. These stepper motor controller ICs are ideal for use in ATMs, money handling machines, video security cameras, and more.
