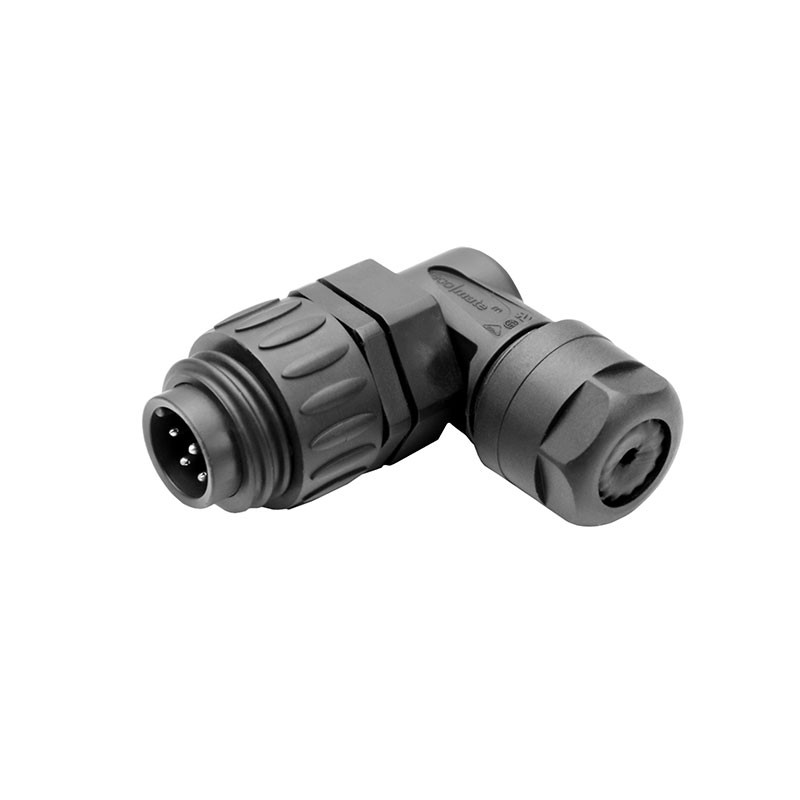

MACHO ESTANCO CODO 90§ 6-P
Referencia: C01630K006eco|mate Male cable connector, No. of contacts 6 + PE, 250Â V, Strain relief with Clamping ring, Cable diameter for 6-12.5 mm, Termination: solder, Contact plating: silver plated
| Common Characteristics | ||
| No. of contacts | Â | 6 + PEÂ |
| Cable diameter |  | 6-12.5 mm |
| Electrical Characteristics | ||
| Rated voltage | DIN EN 60664-1 / IEC 60664-1Â | 250 VÂ |
| Rated impulse voltage | DIN EN 60664-1 / IEC 60664-1Â | 4000VÂ |
| Installation category | DIN EN 60664-1 / IEC 60664-1Â | |||Â |
| Insulation group | DIN EN 60664-1 / IEC 60664-1Â | ||Â |
| Insulation resistance | DIN EN 60512-2, Test 3a / IEC 60512-2, Test 3a | ⥠108  ? |
| Contact resistance | DIN EN 60512-2, Test 2a / IEC 60512-2 Test 2a | ⤠5 m? |
| Current carrying capacity | DIN EN 60512-3, Test 5b / IEC 60512-2 Test 5b | 10 A / + 55 °C |
| Pollution degree | DIN EN 60664-1 / IEC 60664-1Â | 3Â |
| Climatical Characteristics | ||
| Climatic category | DIN EN 60068-1 / IEC 60068-1Â | 40 / 125 / 56Â |
| Operating temperature | Â | -40°C ... +125°CÂ |
| Mechanical Characteristics | ||
| IP degree of protection | DIN EN 60529 / IEC 60529Â | IP 67 / IP 65Â |
| Insertion and withdrawal force | DIN EN 60512-13-2, Test 13b / IEC 60512-13-2, Test 13b | ⤠30 N |
| Mechanical lifetime |  | ⥠500 mating cycles |
| Strain relief |  | Clamping ring |
| Materials | ||
| Insert | Â | Polyamid (PA 6 / PA 6.6)Â |
| Colour |  | black |
| Contact plating |  | silver plated |
| Housing | Â | Polyamid (PA 6 / PA 6.6)Â |
| Gasket |  | Neoprene |
| Further Characteristics | ||
| Termination |  | solder |
| Wire gauge |  | 0,75 mm² |
| Flammability | UL 94Â | V-0Â |
| Locking |  | screw |
8,65 €
10,47 €
(impuestos excl.)
(impuestos inc.)
