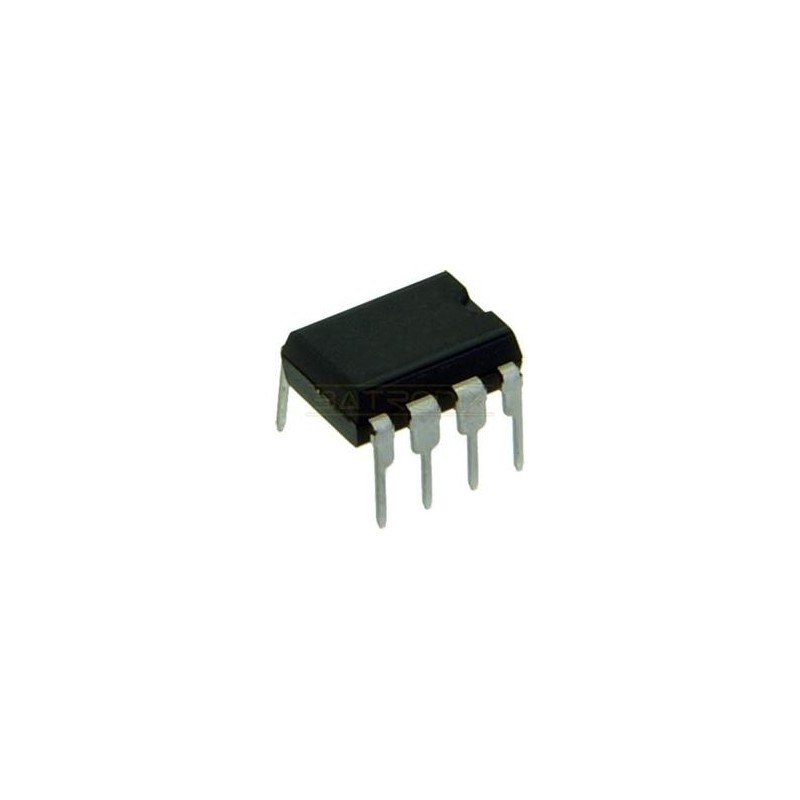

The TS271 is a low cost, low power single operational amplifier designed to operate with single or dual supplies. This operational amplifier uses the ST silicon gate CMOS process giving it an excellent consumption-speed ratio. This amplifier is ideally suited for low consumption applications.
The power supply is externally programmable with a resistor connected between pins 8 and 4. It allows to choose the best consumption-speed ratio and supply current can be minimized according to the required speed. This device is specified for the following ISET current values: 1.5µA, 25µA, 130µA.
AMPLIFICADOR OPERACIONAL
Referencia: TS271CThe TS271 is a low cost, low power single operational amplifier designed to operate with single or dual supplies. This operational amplifier uses the ST silicon gate CMOS process giving it an excellent consumption-speed ratio. This amplifier is ideally suited for low consumption applications.
The power supply is externally programmable with a resistor connected between pins 8 and 4. It allows to choose the best consumption-speed ratio and supply current can be minimized according to the required speed. This device is specified for the following ISET current values: 1.5µA, 25µA, 130µA.
0,23 €
0,28 €
(impuestos excl.)
(impuestos inc.)
Compra Segura
Todos los datos de compra son encriptados y protegidos
Política de entrega
Envío en 48/72 horas
Política de devolución
14 días de devolución
Características:
- Offset null capability (by external compensation)
- Dynamic characteristics adjustable by Iset
- Consumption current and dynamic parameters are stable regarding the voltage power supply variations
- Output voltage can swing to ground
- Very large Iset range
- Stable and low offset voltage
- Three input offset voltage selections
