2434229

ACELEROMETRO RASPBERRY

Referencia: 2434229

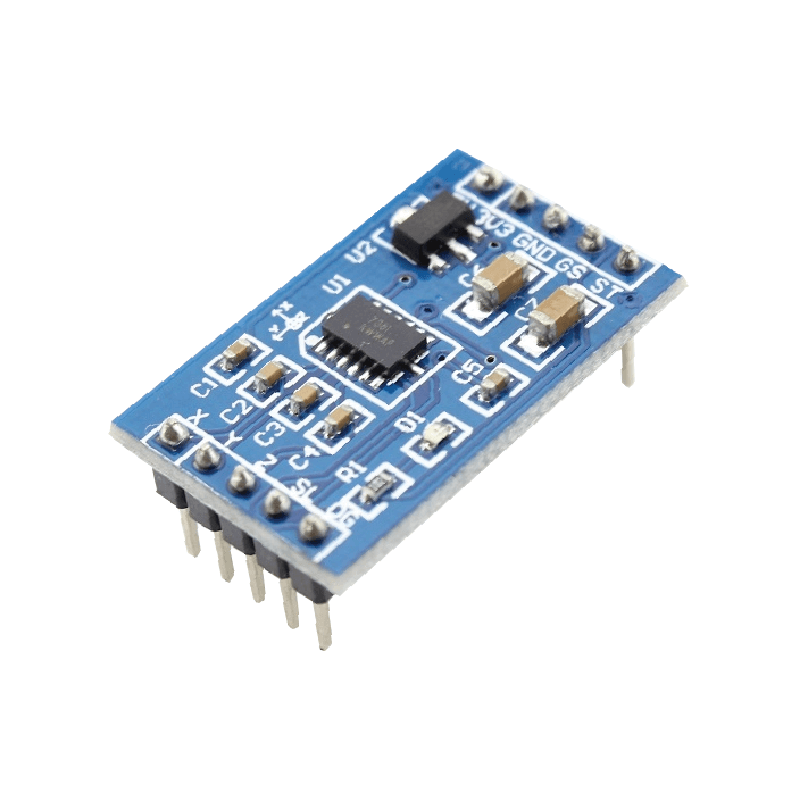

ACELERÓMETRO 3 EJES PARA RASPBERRY PI

The Microstack accelerometer provides easy, plug and play integration and development for designs, requiring an accelerometer function to all platforms compatible with the Microstack framework. Microstack accelerometer can detect position along with 3 axis detection of up, down, left, right, face down and face up. The MMA8491Q acceleration sensor is a low voltage, 3 axis low g accelerometer in a 3mm x 3mm QFN package. This acceleration sensor can accommodate in two configurations acting as either a 45degree tilt sensor or a digital output 14bit, ±8g accelerometer with I2C bus.
  • 1.95V to 3.6V VDD supply range
  • 6µA to 165µA current consumption
  • 1.56Hz to 800Hz update interval
  • ±2g/±4g/±8g dynamically selectable ranges
  • Can be used with Microstack adapter baseboards including Raspberry Pi
  • Can be used directly in breadboards, prototyping and custom designs



15,30 €
18,51 €
(impuestos excl.)
(impuestos inc.)
Cantidad
Disponible

  Compra Segura

Todos los datos de compra son encriptados y protegidos

  Política de entrega

Envío en 48/72 horas

  Política de devolución

14 días de devolución

ACELERÓMETRO 3 EJES PARA RASPBERRY PI

The Microstack accelerometer provides easy, plug and play integration and development for designs, requiring an accelerometer function to all platforms compatible with the Microstack framework. Microstack accelerometer can detect position along with 3 axis detection of up, down, left, right, face down and face up. The MMA8491Q acceleration sensor is a low voltage, 3 axis low g accelerometer in a 3mm x 3mm QFN package. This acceleration sensor can accommodate in two configurations acting as either a 45degree tilt sensor or a digital output 14bit, ±8g accelerometer with I2C bus.
  • 1.95V to 3.6V VDD supply range
  • 6µA to 165µA current consumption
  • 1.56Hz to 800Hz update interval
  • ±2g/±4g/±8g dynamically selectable ranges
  • Can be used with Microstack adapter baseboards including Raspberry Pi
  • Can be used directly in breadboards, prototyping and custom designs



2434229
Nuevo

No hay ninguna opinión por el momento.
