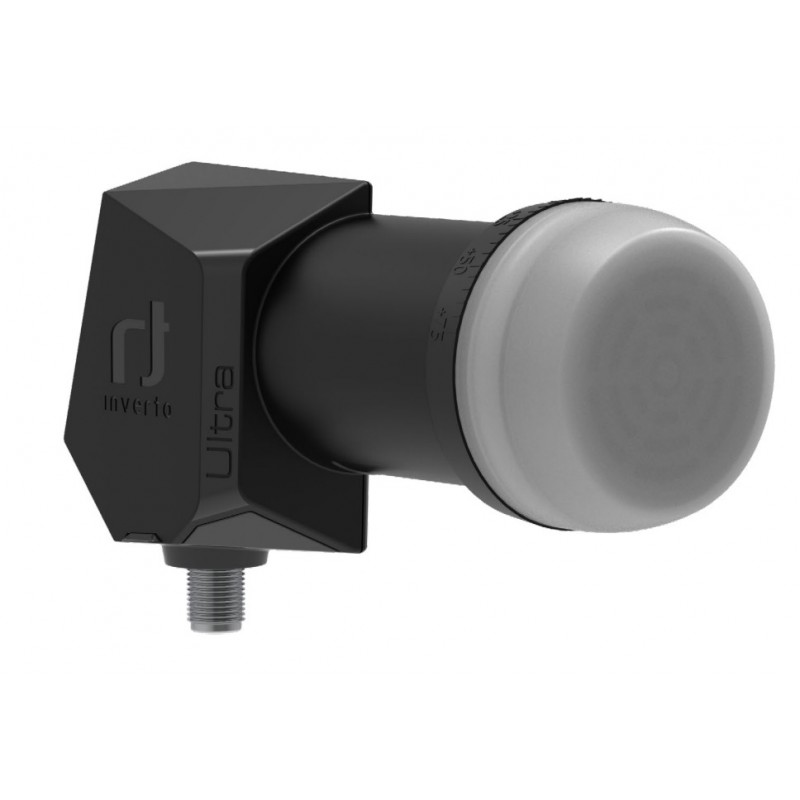

LNB PROFES.0.2DB MUY BAJO RUID

Referencia: IBUS

This LNB is a high performance product featuring the lowest noise figure available to address the need for superior reception under the edges of the satellite footprint skirt. Thanks to its novel front-end architecture and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. This LNB enables the reception of signals from one satellite, its distribution to a single tuner Set-top box and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.



Main Features:

  • Superior Phase Noise performance, DVB-S2 (HDTV) compliant
  • Excellent  Cross Polarization Isolation
  • Very Low Spurious Levels
  • Superior Noise Figure
  • Higher Conversion Gain
  • Ultimate Reliability
Low Band Input Frequency Range10.7 ~ 11.7 GHz
Low Band Output Frequency Range950 ~ 1950 MHz
Low Band LO Frequency9.75 GHz
High Band Input Frequency Range11.7 ~ 12.75 GHz
High Band Output Frequency Range1100 ~ 2150 MHz
High Band LO Frequency10.6 GHz
Noise Figure0.2 dB Typ. (0.7dB Max.)
LO Initial Accuracy+/- 1.0 MHz Max.
LO Temperature Drift+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)- 90 dBc / Hz Max.
Conversion Gain60 dB Min.
Gain Ripple (Over 26MHz Bandwidth)+/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection40 dB Min.
1 dB Compression Point (@ Output)0.0 dBm Min.
Cross Polarization Isolation22 dB Min.
Control Signal Ca (Vertical Polarization)11.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization)16.0 ~ 20.0 V
Control Signal Cc (Band Switching)22 +/- 4 kHz
Output VSWR2.0 : 1
In-Band Spurious- 60 dBm Max.
Current Consumption120 mA Max. @ 11 ~ 20V
Operating Temperature- 30 °C  ~  + 60 °C
Output Impedance75 Ω
Output ConnectorF-Type (Female)
Weight151 g
17,36 €
21,01 €
(impuestos excl.)
(impuestos inc.)
Cantidad
Disponible

  Compra Segura

Todos los datos de compra son encriptados y protegidos

  Política de entrega

Envío en 48/72 horas

  Política de devolución

14 días de devolución
